Portable Welding Fume Extractors

Portable Source Capture Collectors for Welding, Grinding & Metalworking

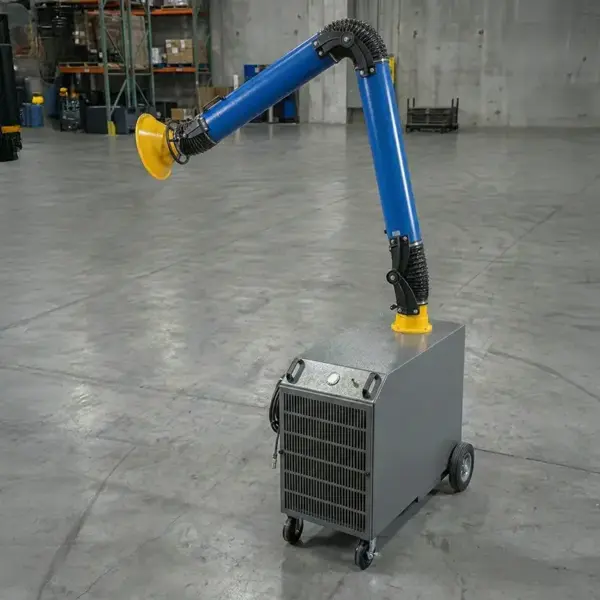

Portable source capture collectors bring industrial-grade extraction to any weld station, job-site, or rotating work cell where fixed ductwork isn’t an option. Fixed ventilation systems work well for dedicated weld stations, but not every shop has that luxury. Maintenance bays, job-site fabrication, rotating work cells, and facilities mid-renovation all have one thing in common: the welder moves, and the extraction needs to move with them. Portable fume extractors solve this with a self-contained unit on heavy-duty casters, integral fan, multi-stage filtration, and an articulating extraction arm that positions the capture hood within inches of the arc. The fume is captured at the source before it disperses into the breathing zone. Ambient air cleaners working overhead are a supplement; they are not a substitute for source capture on materials like stainless steel, galvanized, or chrome-coated metals where hexavalent chromium exposure is a concern. We configure portable extractors for your specific application welding process, duty cycle, material type, and filtration requirements. Call us with those details and we’ll spec the right unit.

• Airflow: Typically 800 – 1,500 CFM depending on arm diameter, one or two arms, and unit size
• Source Capture Design: Captures fume and dust at the point of generation before contaminants enter the breathing zone
• Extraction Arms: Articulating arms from 7′ to 14′ reach; position hood 8″–12″ from the arc
• Standard Filtration: Multi-stage with spark arrestor and fire-retardant primary cartridge
• HEPA Option: Required for stainless steel, galvanized, and high-alloy materials (hexavalent chromium)
• Mobility: Heavy-duty swivel casters with locking brakes; plug-and-play 115V or 230V
• Self-Cleaning: Rotating wand cleaning system extends cartridge life 6 to 7 times longer than traditional reverse pulse portables
• Dual-Arm Models: Available for two-operator stations or high-fume-load processes

Indiana manufacturers from automotive fabricators in Indianapolis to metal fab shops across central Indiana rely on portable source capture collectors when fixed extraction systems can’t follow the work. Facilities mid-renovation, contract welders working across multiple bays, and shops with rotating production cells are ideal candidates. If your process involves stainless steel, galvanized, or chrome-coated materials, source capture with HEPA filtration isn’t optional, it’s the correct engineering control under OSHA’s hexavalent chromium standard.

Selecting the Right Unit — Key Questions

Application Factor	What It Determines
Base material (mild steel, stainless, galvanized, aluminum)	Filtration spec — standard cartridge vs. HEPA required for hex chrome materials
Welding process (MIG, TIG, flux-core, stick)	Fume generation rate and required CFM — flux-core produces significantly more fume than TIG
Duty cycle (intermittent vs. continuous production)	Whether self-cleaning system is required; filter life expectations
Work area size	Arm reach required — 7′ arm for tight cells, 10′–14′ for larger assemblies
Number of operators	Single-arm vs. dual-arm unit; or multiple single-arm portables

OSHA PEL for welding fumes (general) is 5 mg/m³. Hexavalent chromium PEL is 0.005 mg/m³ — 1,000x more restrictive. Source capture with HEPA filtration is the correct engineering control for stainless and galvanized welding.

Portable Fume Extractor Unit Comparison

Unit Type	Airflow	Arm Options	Filtration	Mounting	Best For
Standard Portable Extractor	1,200 CFM	7′ arm, 8″ diameter; ~2′ draw distance	Metal mesh pre-filter + 80/20 cellulose/polyester cartridge; spark arrestance standard	Floor mount on locking casters; 120V plug-and-play	Single operator MIG, TIG, or stick welding; maintenance bays; job-site work
Floor or Wall Mount Portable	1,200 CFM	7′ or 10′ arm, 8″ diameter	Metal mesh pre-filter + nanofiber FR cartridge MERV 15 standard; PTFE MERV 16 option	Floor or wall mount — no extra parts required; 120V or 220V	Shops needing flexible placement; two-shift operations; converts to downdraft table with one accessory

Both units rated at 1,200 CFM with self-cleaning rotating wand system — filter life approximately 6 to 7 times longer than traditional reverse pulse portables. 10-year structural warranty on major components. Contact us to specify the right unit for your process.

Who This Is For

Portable fume extractors are the right fit when the work moves around or fixed ductwork isn’t practical. Common applications we see in Indiana facilities include:

• Job shops and fabrication facilities where welders rotate between multiple bays or work cells
• Maintenance departments welding in the field or across multiple plant locations
• Facilities mid-renovation or expansion that need extraction before a permanent system is installed
• Shops welding stainless steel, galvanized, or chrome-coated materials that require HEPA-grade source capture
• Two-operator stations or high-fume processes where a single ambient unit overhead is not sufficient
• Any operation where the work piece is too large to bring to a fixed hood or downdraft table

Problems This Solves

• Captures weld fume at the source before it reaches the breathing zone, reducing worker exposure to manganese, hexavalent chromium, and other regulated metals
• Provides HEPA-grade filtration for stainless, galvanized, and high-alloy welding where ambient air cleaners alone do not meet OSHA requirements
• Eliminates the need for fixed ductwork at stations that move or change frequently
• Extends filter life significantly with self-cleaning rotating wand system compared to traditional reverse-pulse portables
• Converts to a downdraft table configuration with a single accessory for grinding and finishing operations
• Supports OSHA compliance for weld fume PELs in metal fabrication and welding operations across Indiana

Portable Fume Extractors for Metal Fabrication and Welding Operations

Portable fume extractors are the right choice when welding stations move, work pieces are too large to bring to a fixed hood, or when you need flexible source capture across multiple bays. They are commonly used in metal fabrication shops, structural steel fabrication, maintenance welding, and job shop environments. For a full overview of ventilation requirements in welding and grinding operations, including ambient air options and fixed extraction systems, see our metal fabrication and welding ventilation page.
