You can’t see the fine wood dust that stays airborne for hours, but you feel it in your throat and see it coating your finished projects.
Worse, you might not realize you’re breathing particles small enough to cause long-term lung damage (source).
For small shop owners and woodworking hobbyists, upgrading from a shop vac to a proper dust collection system isn’t just about cleaner air; it’s about protecting your health and improving your work quality.
The problem?
Many smaller shops and hobbyists can’t tell if their setup actually meets OSHA’s 5 mg/m³ exposure limit because equipment specs often don’t match real-world performance.
Sizing Small Shop Dust Collection: CFM and Capture Velocity
Before you buy equipment, you need to understand two numbers: how much air your tools require (CFM) and the speed needed to move that air (Velocity).
Getting this wrong means you’ll either overpay for unnecessary horsepower or end up with a system that doesn’t actually protect you.
Confused about CFM requirements for your shop?
Most small shop owners waste money on systems that either underperform or cost way more than necessary.
Get a free CFM calculation based on your actual tools and layout – no equipment purchase required
The Role of Capture Velocity
To keep wood dust from escaping into your breathing zone, you must maintain a minimum transport velocity of 3,500 to 4,000 feet per minute (FPM) in your ductwork.This is based on NIOSH standards for effective chip and dust control .
If your airspeed drops below this level, dust settles in your lines.
This creates two major problems:
- Fire Hazards: Accumulated sawdust in pipes is a primary cause of shop fires.
- Clogs: Settled dust creates blockages that kill your system's suction at the source.
Static Pressure (SP) measures the resistance air faces as it moves through your system. In small shops, friction is the “performance killer” that reduces your rated CFM.
- Ducting Friction: Smooth-wall metal pipe is the most efficient way to move air. Ribbed flexible hose has triple the resistance per foot, acting like a speed bump for your suction.
- Filter Loading: As your filter bag or cartridge fills with dust, resistance increases and your actual CFM drops.
- Port Mismatches: Connecting a 4-inch duct to a 2.5-inch tool outlet creates a massive pressure drop. This often kills suction exactly where you need it most.
Selecting the Right Dust Collection Equipment for Your Shop
Your dust collection system needs to match your tools and shop size. Here is how to choose the right professional ventilation equipment based on the work you actually do.
Cyclone Dust Collectors
Best for: Table saws, planers, jointers, and any stationary tool producing large chips or shavings.
A cyclone dust collector uses centrifugal force to separate heavy chips into a bin before they ever reach the filter. This keeps your suction constant and your filters clear, even during heavy production. If you run multiple stationary tools, this is your shop’s workhorse.
Portable Fume & Dust Extractors
Best for: Random orbital sanders, routers, tracksaws, and handheld power tools.
Dust extractors prioritize high static pressure over raw volume and are designed to pull air through small tool ports. They use HEPA filtration to catch particles as small as 0.3 microns, the invisible dust that stays in your lungs.
Downdraft Tables
Best for: Manual sanding, assembly, and detail work.
A downdraft table pulls dust directly down and away from your face before it can become airborne. It is the most effective way to manage fine particulate during the finishing stages of a project.

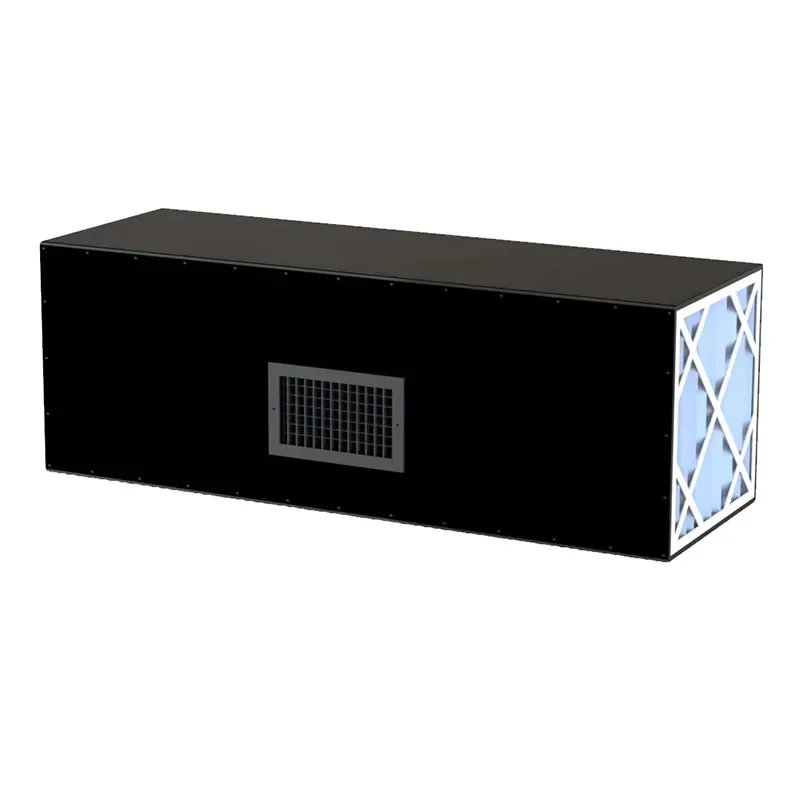

Ambient Air Dust Collectors
Best for: Cleaning the air that escapes tool-side collection.
These ceiling-mounted units act as a safety net by continuously filtering background dust. An ambient air dust collector, or air cleaner, should cycle the air in your shop 6 to 8 times per hour to ensure long-term respiratory safety.

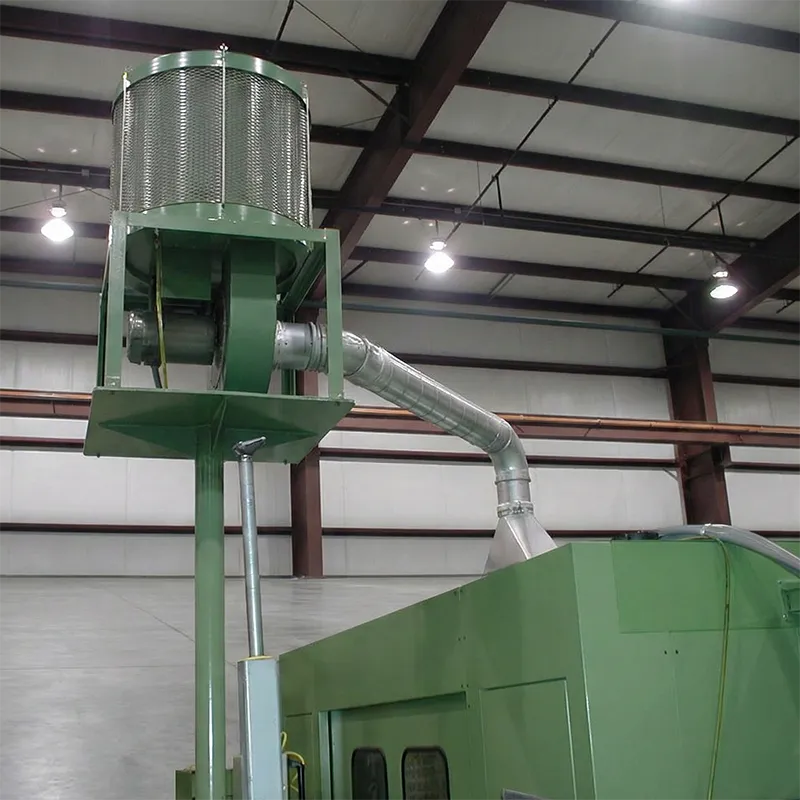

Mist and Oil Fume Collectors
Best for: CNC machines or metalworking tools using coolants.
If your workflow involves oils or liquids, you need specialized mist collectors. Standard wood dust filters are designed for dry waste; oily mist will ruin them in days and create a significant fire risk.
Matching Your Tools to the Right Dust Collection Equipment
| If You Are Using… | The Primary Waste Type | Best Equipment Solution | Why It Matters |
|---|---|---|---|
| Planers & Jointers | Heavy Wood Chips | Cyclone Collector | You need volume (CFM) to move bulk waste without clogging. |
| Sanders & Routers | Fine Dust (<10μ) | Portable Extractor | You need pressure (SP) to pull air through small tool ports. |
| Assembly & Sanding | Airborne Particulate | Downdraft Table | Pulling dust down is faster than catching it once it’s up. |
| CNCs & Grinders | Coolant / Oil Mist | Mist & Oil Collector | Oily waste requires specialized filters, not standard bags. |
Stop Guessing, Start Breathing Clean Air
You can’t afford to guess your CFM requirements. Most small shop owners waste thousands on undersized systems or overbuy horsepower they don’t need. The difference between a system that works and one that doesn’t comes down to proper calculations based on your specific tools, duct layout, and available power.
We take a consultative approach to dust collection design. We are manufacturer-agnostic, meaning we source US-made equipment nationwide and match it to your actual needs, not our inventory.
We ship directly from the Midwest to shops across the country.
What You Get in a Risk Free Consultation
- Custom CFM calculations for your specific tool list.
- Layout optimization to minimize static pressure loss and maximize suction.
- Direct equipment sourcing on professional-grade collectors built to last.
Ready to discuss your shop’s ventilation needs?
Not sure which system fits your tools and budget?
We’ll review your shop layout and recommend the right equipment – whether that’s a portable extractor or a cyclone system.
Zero sales pressure, just straight answers from experts who’ve solved dust collection problems for decades.
Common Questions About Small Shop Dust Collection Systems
A shop vac uses high pressure and low volume for small hoses and spot cleanup. A dust collector uses high volume and low pressure to move large amounts of air through 4-inch or larger ducts. Shop vacs clog on stationary tools like planers and table saws because they lack the volume to move bulk waste.
While PVC is common in hobbyist shops due to cost, it creates two problems. First, PVC builds up static charge that can cause shocks or spark risk in dust-heavy air. Second, PVC fittings create more airflow resistance than smooth-wall metal ducting with long-radius elbows. For professional or high-volume shops, metal ducting is the safer, more efficient choice.
For effective ambient air cleaning, a small woodworking shop should aim for 6 to 8 air changes per hour. This ensures that the entire volume of air in the shop is filtered through your ambient air cleaner every 7 to 10 minutes. This is necessary to capture the sub-micron particles that escape source-capture systems at the tool.
Yes. Every foot of flexible hose creates significantly more friction (static pressure loss) than smooth-wall pipe. Reducing your hose length from 10 feet to 5 feet can noticeably increase the CFM at your tool. To maximize suction, always use the shortest length of hose possible and avoid unnecessary bends or "coils" in the line.
